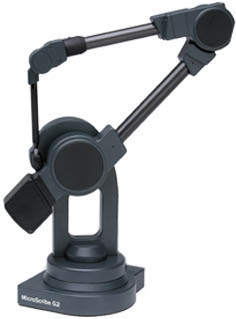

MicroScribe® G2 technology for affordable digitising !	MicroScribe® G2's 4 models to choose from:- MicroScribe-G2 perfect for animators and graphics professionals. MicroScribe-G2X ideal for engineers and scientists. MicroScribe-G2L offers an extended workspace for digitising convenience. MicroScribe-G2LX extended workspace with high accuracy. Each of the above MicroScribe's are complete with USB and Serial interface, UK Power Supply, Standard Twin Digital Foot-pedal, Serial cable and documentation. Plus 2 year warranty.
MicroScribe® family has grown. Now you have move choice to buy the right MicroScribe to suit your application and budget. MicroScribe® G2 The most tried and test articulated digitising arm of all time. Originated as the MicroScribe 3D back in 1995 and has evolved to be an industry standard. Now the G2 range are USB driven from a whole host of software solutions covering a wide range of user applications on Windows and Macintosh OS-X. MicroScribe® MX Building on the G2 technology, Immersion have broken the mould with the new MX & MLX arms that offer metrology level accuracy. MicroScribe® Spinning Stylus Each of the MicroScribe G2's and MX's are available as built to order systems with a 6th degree of freedom around the stylus. The standard spinning stylus includes a rotary encoder and has the option to add a transducer mount for fixing of other equipment. The spinning stylus models are normally only purchased for special applications where the user is developing their own attachments and specialised software. Standard Spinning Stylus Spinning Stylus with optional transducer mount

How it works - the MicroScribe® digitizing process

Models available:-

　

Model	Accuracy	Workspace
MicroScribe-G2	0.38mm	1270mm 球體
MicroScribe-G2X	0.23mm	1270mm 球體
MicroScribe-G2L	0.43mm	1675mm 球體
MicroScribe-G2LX	0.30mm	1675mm 球體
MicroScribe-G2 Spinning Stylus	0.38mm	1270mm 球體
MicroScribe-G2X Spinning Stylus	0.23mm	1270mm 球體
MicroScribe-G2L Spinning Stylus	0.43mm	1675mm 球體
MicroScribe-G2LX Spinning Stylus	0.30mm	1675mm 球體
MicroScribe-MX	+/- 0.114mm	1270mm 球體
MicroScribe-MLX	+/- 0.152mm	1675mm 球體
MicroScribe-MX Spinning Stylus	+/- 0.114mm	1270mm 球體
MicroScribe-MLX Spinning Stylus	+/- 0.152mm	1675mm 球體

Software Solutions for the MicroScribe G2 MicroScribe technology can be used with many of the common CAD/CAM and 3D Graphic applications. There are three levels of integration available. Please refer to the legend below to find the level of support available for the CAD/CAM or 3D Imaging applications you use. In some cases, more than one level of support is available.      Direct support available. No additional software is needed other than the host application   Microscribe Utility Software -- Free with your MicroScribe G2! This software from Immersion enables 2D or 3D data from the MicroScribe to be sent to the host application. Not all applications can utilise this software utility.   Free evaluation copy of the software is available on the demo CD. Plug-in Support - An additional piece of software provides MicroScribe capability in the host application Developers - Can request the Software Development Kit to add MicroScribe functionality to your application.

CAD/CAM Host Application Host Manufacturer Support 3rd Plug-in Support 　 Alias StudioTools Alias|Wavefront   PC AlphaCAM Licom   PC AutoCAD Autodesk HighRES BASIC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 PC AutoCAD Mechanical Autodesk HighRES BASIC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 PC Autodesk VIZ Autodesk   Scribe-iT Power Digitizer Pack PC CADKEY CADKEY Corporation   HighRES BASIC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 RevEng SurfINSPECT PC HandyCut PicaSoft   　 　 HandyScan PicaSoft   　 PC Inventor Autodesk HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 PC PowerINSPECT Delcam   PC PowerSHAPE Delcam   PC Mayka ProSoft SA   PC/MAC Mastercam Mastercam HighRES BASIC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 Verisurf PC Mechanical Desktop Autodesk HighRES BASIC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 PC Metrix Build!IT MAYA Metrix 　 PC Pro/ENGINEER PTC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 PC Rhinoceros (Rhino3D) MicroScribe Tutorial available. Robert McNeel & Associates   PC Shoemaster CSM3D International Limited   PC SolidThinking EVOQE s.r.l.   　 PC/MAC SolidWorks SolidWorks Corp.   DezignWorks HighRES BASIC HighRES ADVANCED HighRES INDUSTRIAL HighRES Feature PLUS 1 HighRES Feature PLUS 2 REVWARE REVWORKS PC SURFCAM Surfware, Inc.   PC 3D Graphics / Imaging Host Application Host Manufacturer Support Plug-in Suport 　 3ds max Discreet   Scribe-iT Power Digitizer Pack PC Autodesk VIZ Autodesk   Scribe-iT Power Digitizer Pack PC form·Z auto·des·sys, Inc.   PC/MAC LightWave 3D NewTek   DigiScribe PC Maya Alias|Wavefront   MicroScribe Connections PC/MAC Rhinoceros Robert McNeel & Associates   　 PC PiXELS 3D PiXELS Digital, Inc.   MAC solidThinking EVOQE s.r.l.   　 PC/MAC Softimage | XSI Softimage   PC Amapi 3D ENOVIA   PC/MAC Not sure which package is right for you? Please contact us. We can examine your needs and determine which software solution is best for your application. Accessories There are several optional accessories available for the MicroScribe, that can be purchased at the time of ordering.   New Metric Digitising Fixture Plate - Part # CMS-FIX-PTC Allows your MicroScribe and model to be secured to the same surface, increasing stability and overall accuracy of your digitising process. Constructed from aluminium in a brushed anodised finish and includes an assortment of non-marking clamps. A perfect solution to easy digitising. Support Tripod Hand Switch Rugged Carrying Case Double Digital Foot Pedal Universal Power Supply Digitizing Fixture Plate Standard Tip Ball Tip Extra Fine Tip Digitizing Platform & Fixturing Putty
